4512433S | LAPP
PVC-switching strand, X05V-K, 1.0 mm², white/black, outer Ø 2.8 mm, 4512433S
Unit Price (€ / mtr.)
0.6902 € *
Available: 0 mtr.
Leadtime: On Request **

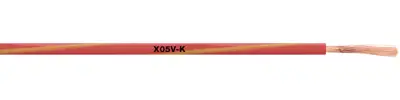

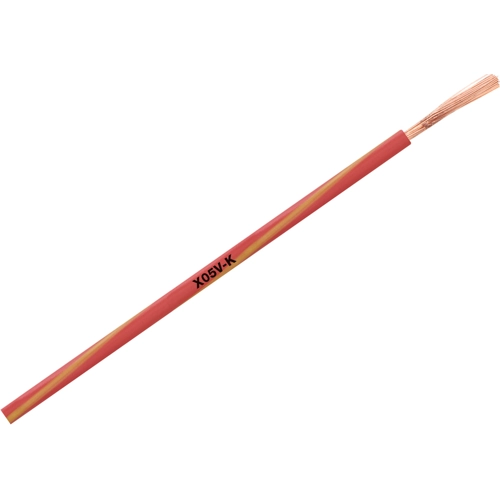

Single wire, 4512433S, LAPP
The 4512433S is a wiring cable with thermoplastic PVC-insulation for protected, stationary installation inside devices as well as inside or on lamps. Suitable for installation inside of closed conduits and cable ducting systems and on or under plaster, but only as part of signal or control circuits.
Features
- Twin-colour spiralized PVC
- Flame-retardant
Applications
- Internal wiring of devices
- Protected installation in and on lighting equipments
- Signal systems in and on plaster in tubes
Technical specifications
| Core insulation material | PVC | |
| Colour | white/black | |
| Outer diameter | 2.8 mm | |
| Test voltage | 2 kV | |
| Halogen free | No | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Cable material | copper, bright | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Bending radius unmoved | 11.2 mm | |
| Standard number | EN | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
