4512323S | LAPP

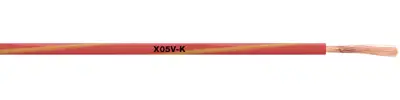

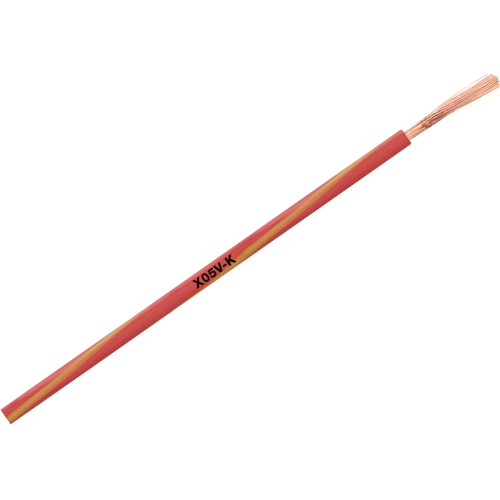

PVC-switching strand, X05V-K, 1.0 mm², yellow/white, outer Ø 2.8 mm, 4512323S
Unit Price (€ / mtr.)
0.6783 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single wire, 4512323S, LAPP
The 4512323S is a wiring cable with thermoplastic PVC-insulation for protected, stationary installation inside devices as well as inside or on lamps. Suitable for installation inside of closed conduits and cable ducting systems and on or under plaster, but only as part of signal or control circuits.
Features
- Twin-colour spiralized PVC
- Flame-retardant
Applications
- Internal wiring of devices
- Protected installation in and on lighting equipments
- Signal systems in and on plaster in tubes
Technical specifications
Filter | Property | Value |
---|---|---|
Standard number | EN | |
Cable material | copper, bright | |
Test voltage | 2 kV | |
Conductor category | CL.5 = fine stranded | |
Core insulation material | PVC | |
Material | PVC | |
Temperature range (unmoved) | -40 °C to 70 °C | |
Temperature range (active) | -5 °C to 70 °C | |
Rated voltage U0 | 300 V | |
Halogen free | No | |
Outer diameter | 2.8 mm | |
Product type | switching strand | |
Bending radius unmoved | 11.2 mm | |
Colour | yellow/white | |
Rated voltage | 500 V | |
Cable cross-section | 1.0 mm² |
Download
Logistics
Property | Value |
---|---|
Country of origin | DE |
Customs tariff number | 85444995 |
Compliance
Property | Value |
---|---|
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
