4126008S | LAPP

PVC-switching strand, LiY, 0.25 mm², 14 x 0.15 mm, pink, outer Ø 1.3 mm, 4126008S

Order No.: 30P3747
EAN: 4044774695099
MPN:
4126008S
LiY 1x0,25 PK
Series: LiY
4126008S LAPP Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.3094 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
77.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 mtr.
0.3094 €

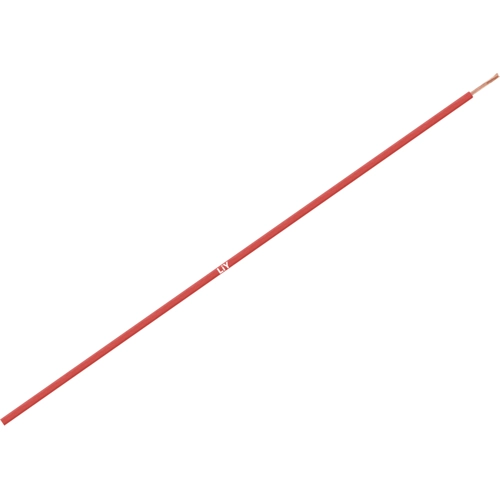

Stranded wire, 4126008S, LAPP KABEL

LIY, PVC control cable, extra-low voltage stranded wire for fixed wiring of telecommunication equipment and electronic assemblies, max. +70 °C at conductor.

Features

  • Flame retardant
  • Core insulation based on PVC
Technical specifications
Filter Property Value
Outer diameter 1.3 mm
Standard number VDE 0207-4
Core insulation material PVC
Temperature range (active) -15 °C to 50 °C
Conductor category CL.5 = fine stranded
Cable material copper, bright
Cable cross-section 0.25 mm²
Temperature range (unmoved) -30 °C to 70 °C
Rated voltage 50 V
Cable structure 14 x 0.15 mm
Test voltage 2.5 kV
Rated voltage U0 50 V
Colour pink
Halogen free No
Logistics
Property Value
Customs tariff number 85444993
Country of origin DE
Original Packaging Reel with 250 meters
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
