3018942 | LAPP

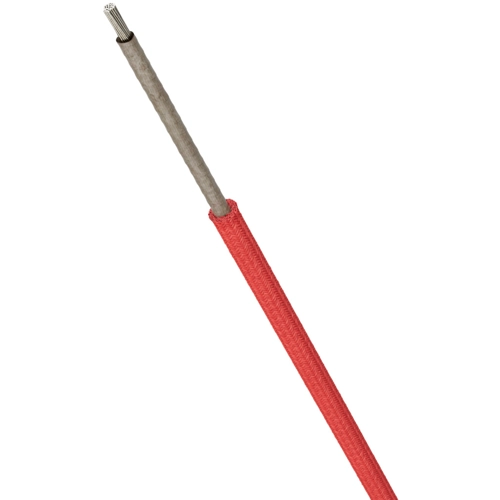

Glass silk-switching strand, halogen free, ÖLFLEX HEAT 1565 SC, 4.0 mm², red, outer Ø 4.8 mm, 3018942
Order No.: 33P908
EAN: 4044774694726
MPN:
3018942
ÖLFLEX HEAT 1565 SC 1X4
Series: ÖLFLEX HEAT 1565 SC
Unit Price (€ / mtr.)
40.8170 € *
Standard delivery time from the manufacturer is: On Request
Glass silk-switching strand, 3018942, LAPP
Features
- Flame retardant
- Only suitable for use in dry conditions
Applications
- Guarantees the circuit even in areas with extremely high ambient temperatures
- Blast furnaces and coking plants
- Refineries
- Glassworks
- Aluminium and steelworks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bending radius moved | 72 mm | |
| Colour | red | |
| Core insulation material | glass silk | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| Cable cross-section | 4.0 mm² | |
| Temperature range (unmoved) | -190 to 400 °C | |
| Outer diameter | 4.8 mm | |
| Test voltage | 2.2 kV | |
| Product type | switching strand | |
| Bending radius unmoved | 24 mm | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, nickel-plated | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
