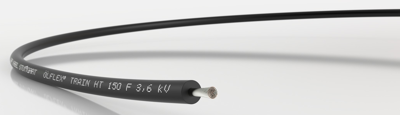

Silicone-train cable, halogen free, ÖLFLEX TRAIN HT 150 F 3,6kV, 35 mm², black, outer Ø 14.8 mm, 15382047
Order No.: 33P2603
EAN: 4044777819522
MPN:
15382047
ÖLFLEX TRAIN HT 150 FF 1,8kV 1x35
Series: ÖLFLEX TRAIN HT 150 F 3,6kV
Unit Price (€ / mtr.)
31.9872 € *
Standard delivery time from the manufacturer is: On Request
Single-core cable, 15382047, LAPP
The 15382047 is a single core silicone rubber insulated high temperature cable for railway rolling stock, having special fire performance. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage U0 | 1800 V | |
| Colour | black | |
| Outer diameter | 14.8 mm | |
| Bending radius unmoved | 47.7 mm | |
| Core insulation material | silicone | |
| Temperature range (unmoved) | -40°C to 150 °C | |
| Rated voltage | 3 kV | |
| Halogen free | Yes | |
| Cable material | copper, tin-plated | |
| Product type | train cable | |
| Test voltage | 6.5 kV | |
| Cable cross-section | 35 mm² | |
| Bending radius moved | 79.5 mm | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
