15382014 | LAPP

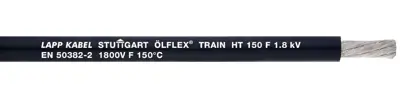

Silicone-train cable, halogen free, ÖLFLEX TRAIN HT 150 F 1,8kV, 240 mm², black, outer Ø 26.2 mm, 15382014
Order No.: 33P2574
EAN: 4044777819003
MPN:
15382014
ÖLFLEX TRAIN HT 150 F 1,8kV 1x240
Series: ÖLFLEX TRAIN HT 150 F 1,8kV
Unit Price (€ / mtr.)
169.4203 € *
Standard delivery time from the manufacturer is: On Request
Single-core cable, 15382014, LAPP
The 15382014 is a single core silicone rubber insulated high temperature cable for railway rolling stock, having special fire performance. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -40°C to 150 °C | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Product type | train cable | |
| Test voltage | 6.5 kV | |
| Cable material | copper, tin-plated | |
| Rated voltage | 3 kV | |
| Core insulation material | silicone | |
| Rated voltage U0 | 1800 V | |
| Colour | black | |
| Cable cross-section | 240 mm² | |
| Outer diameter | 26.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
