15382013 | LAPP

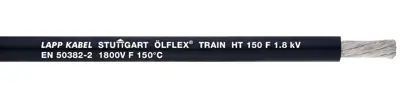

Silicone-train cable, halogen free, ÖLFLEX TRAIN HT 150 F 1,8kV, 185 mm², black, outer Ø 23.6 mm, 15382013
Order No.: 33P2572
EAN: 4044777818983
MPN:
15382013
ÖLFLEX TRAIN HT 150 F 1,8kV 1x185
Series: ÖLFLEX TRAIN HT 150 F 1,8kV
Unit Price (€ / mtr.)
100.1504 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
10,015.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
100.1504 €
Single-core cable, 15382013, LAPP
The 15382013 is a single core silicone rubber insulated high temperature cable for railway rolling stock, having special fire performance. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | silicone | |
| Colour | black | |
| Outer diameter | 23.6 mm | |
| Test voltage | 6.5 kV | |
| Halogen free | Yes | |
| Cable cross-section | 185 mm² | |
| Cable material | copper, tin-plated | |
| Rated voltage U0 | 1800 V | |
| Temperature range (unmoved) | -40°C to 150 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 3 kV |
Download
Logistics
| Customs tariff number | 85446010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
