15382007 | LAPP
Silicone-train cable, halogen free, ÖLFLEX TRAIN HT 150 F 1,8kV, 35 mm², black, outer Ø 13.1 mm, 15382007
Order No.: 33P2576
EAN: 4044777818860
MPN:
15382007
ÖLFLEX TRAIN HT 150 F 1,8kV 1x35
Series: ÖLFLEX TRAIN HT 150 F 1,8kV
Unit Price (€ / mtr.)
25.6088 € *
Standard delivery time from the manufacturer is: 6 Weeks

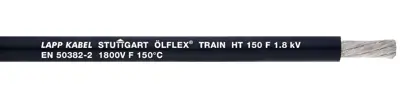

Single-core cable, 15382007, LAPP
The 15382007 is a single core silicone rubber insulated high temperature cable for railway rolling stock, having special fire performance. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | silicone | |
| Test voltage | 6.5 kV | |
| Cable cross-section | 35 mm² | |
| Temperature range (unmoved) | -40°C to 150 °C | |
| Rated voltage U0 | 1800 V | |
| Outer diameter | 13.1 mm | |
| Colour | black | |
| Rated voltage | 3 kV | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
