15361014 | LAPP
Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 361 1,8kV, 240 mm², black, outer Ø 26.8 mm, 15361014
Order No.: 33P2558
EAN: 4044777261062
MPN:
15361014
ÖLFLEX TRAIN 361 1,8kV 1X240 BK
Series: ÖLFLEX TRAIN 361 1,8kV
Unit Price (€ / mtr.)
92.2488 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

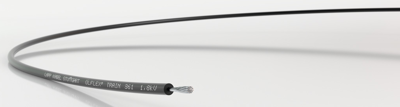

Single-core cable, 15361014, LAPP
The 15361014 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | polymer compound | |
| Colour | black | |
| Outer diameter | 26.8 mm | |
| Test voltage | 6.5 kV | |
| Halogen free | Yes | |
| Cable cross-section | 240 mm² | |
| Cable material | copper, tin-plated | |
| Rated voltage U0 | 1800 V | |
| Temperature range (unmoved) | -40°C to 120 °C | |
| Temperature range (active) | -35°C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 3 kV |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85446010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
