15361012 | LAPP
Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 361 1,8kV, 150 mm², black, outer Ø 21.4 mm, 15361012
Order No.: 33P2554
EAN: 4044777261000
MPN:
15361012
ÖLFLEX TRAIN 361 1,8kV 1X150 BK
Series: ÖLFLEX TRAIN 361 1,8kV
Unit Price (€ / mtr.)
54.5496 € *
Standard delivery time from the manufacturer is: On Request

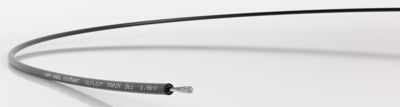

Single-core cable, 15361012, LAPP
The 15361012 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage U0 | 1800 V | |
| Colour | black | |
| Outer diameter | 21.4 mm | |
| Core insulation material | polymer compound | |
| Temperature range (unmoved) | -40°C to 120 °C | |
| Rated voltage | 3 kV | |
| Halogen free | Yes | |
| Cable material | copper, tin-plated | |
| Product type | train cable | |
| Test voltage | 6.5 kV | |
| Cable cross-section | 150 mm² | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -35°C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
