15361006 | LAPP
Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 361 1,8kV, 25 mm², black, outer Ø 10.5 mm, 15361006
Order No.: 33P2559
EAN: 4044777260829
MPN:
15361006
ÖLFLEX TRAIN 361 1,8kV 1X25 BK
Series: ÖLFLEX TRAIN 361 1,8kV
Unit Price (€ / mtr.)
11.9595 € *
Standard delivery time from the manufacturer is: 6 Weeks

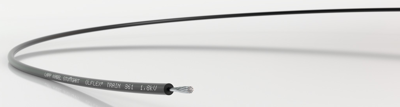

Single-core cable, 15361006, LAPP
The 15361006 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | polymer compound | |
| Test voltage | 6.5 kV | |
| Cable cross-section | 25 mm² | |
| Temperature range (unmoved) | -40°C to 120 °C | |
| Temperature range (active) | -35°C to 90 °C | |
| Rated voltage U0 | 1800 V | |
| Outer diameter | 10.5 mm | |
| Colour | black | |
| Rated voltage | 3 kV | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
