1232653/100 | LAPP

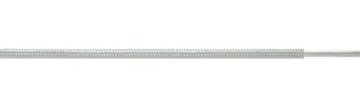

Glass silk-switching strand, halogen free, ÖLFLEX HEAT 650 SC, 1.5 mm², transparent, outer Ø 3 mm, 1232653/100
Order No.: 30P4959
EAN: 4044777291007
MPN:
1232653/100
ÖLFLEX HEAT 650 SC 1x1,5
Series: ÖLFLEX HEAT 650 SC
Unit Price (€ / mtr.)
11.6501 € *
Available: 0 mtr.
Leadtime: 1 Week **
Stranded wire, 1232653/100, LAPP KABEL
Glass-fiber core cable for use in blast furnace and power plant construction, motor, appliance and luminaire construction at temperatures up to +650°C.
Features
- Only suitable for installation in dry conditions
Applications
- Heating modules, electric heaters, heating cabinets furnaces, electric stoves, storage heaters Iron and steel works
- Foundries, glass and ceramics processing, chemical industry
- Machinery, equipment and power plant construction
Technical specifications
| Core insulation material | glass silk | |
| Colour | transparent | |
| Outer diameter | 3 mm | |
| Test voltage | 1.8 kV | |
| Halogen free | Yes | |
| Cable cross-section | 1.5 mm² | |
| Cable material | nickel | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -50 °C to 700 °C | |
| Temperature range (active) | -50 °C to 650 °C | |
| Conductor category | CL.5 = fine stranded | |
| Bending radius unmoved | 7.5 mm | |
| Standard number | VDE 0295 | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
