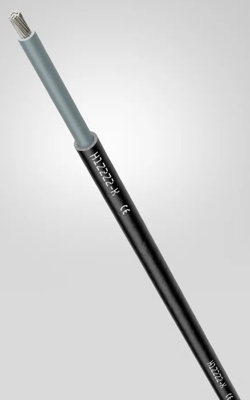

Name: Copolymer-photovoltaic cable, halogen free, H1Z2Z2-K, 4.0 mm², black, outer Ø 5.5 mm, 1023759
Brand: LAPP
SKU: 91F8500
Availability: InStock

Copolymer-photovoltaic cable, halogen free, H1Z2Z2-K, 4.0 mm², black, outer Ø 5.5 mm, 1023759

Order No.: 91F8500

EAN: 4056155098412

MPN:

1023759

H1Z2Z2-K 1X4 BK

Series: H1Z2Z2-K

Unit Price (€ / mtr.)

1.2257 € *

Total Price:

1.23 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Photovoltaic cable, 1023759, LAPP

The photovoltaic cable type -K is resistant to abrasion, notch, weather, and UV radiation. This cross-linked solar photovoltaic cable is permitted to be freely suspended, and is suited to permanent outdoor use to connect grounded and ungrounded photovoltaic systems.

Features

Impact-/Crushing-Resistance
Flame retardant
Halogen-free
Low corrosiveness of combustion gases
Robust against mechanical impacts

Applications

Photovoltaic systems with DC system voltage up to 1800 V to ground
Permanent water contact and submersion down to 1 metre in water depth
For use inside and on double-insulated appliances and systems (protection class II)
For short-circuit protected, or earth fault proof wiring
Installation inside ducts, conduits, channels, raceways, plaster as well as devices, appliances, etc.

Technical specifications

Filter	Property	Value
	Core insulation material	copolymer
	Temperature range (active)	-25 °C to 90 °C
	Test voltage	6.5 kV
	Colour	black
	Halogen free	Yes
	Outer diameter	5.5 mm
	Conductor category	CL.5 = fine stranded
	Rated voltage U0	1000 V
	Standard number	according to DIN VDE 0295
	Rated voltage	1 kV
	Product type	photovoltaic cable
	Cable material	copper, tin-plated
	Cable cross-section	4.0 mm²
