1023622 | LAPP

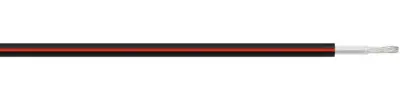

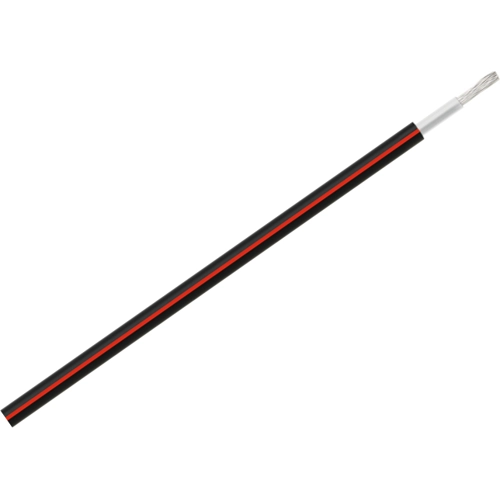

XLPE-photovoltaic cable, halogen free, ÖLFLEX SOLAR XLWP, 6.0 mm², black/red, outer Ø 6.4 mm, 1023622
Order No.: 33P5147
EAN: 4044777548484
MPN:
1023622
ÖLFLEX SOLAR XLWP 1x6 WH/BKRD
Series: ÖLFLEX SOLAR XLWP
Unit Price (€ / mtr.)
3.2130 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
321.30 € *
Price list
Quantity
Price per unit*
100 mtr.
3.2130 €
500 mtr.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale
Solar cable, 1023622, LAPP
The 1023622 is a solar cable suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power systems. It is applicable for the connection between solar panels and as extension cable between the individual module strings or the DC/AC inverter.
Features
- Solar Energy
- Halogen-free
- Cold-resistant
- Acid-resistant
- Temperature-resistant
- Waterproof
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | XLPE | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | XLPE | |
| Test voltage | 6.5 kV | |
| Cable cross-section | 6.0 mm² | |
| Bending radius moved | 26.8 mm | |
| Bending radius unmoved | 26.8 mm | |
| Temperature range (unmoved) | -40 °C to 120 °C | |
| Temperature range (active) | -25 °C to 120 °C | |
| Rated voltage U0 | 1500 V | |
| Outer diameter | 6.4 mm | |
| Colour | black/red | |
| Rated voltage | 1.5 kV | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444999 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
