1023621 | LAPP

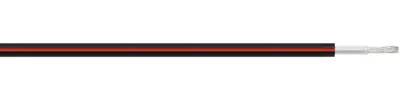

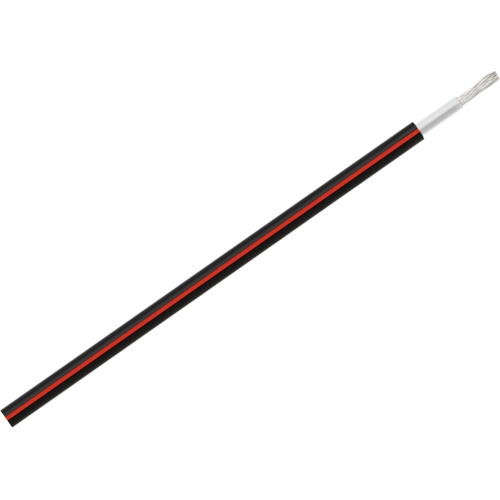

XLPE-photovoltaic cable, halogen free, ÖLFLEX SOLAR XLWP, 4.0 mm², black/red, outer Ø 5.8 mm, 1023621
Order No.: 33P5144
EAN: 4044777548453
MPN:
1023621
ÖLFLEX SOLAR XLWP 1x4 WH/BKRD
Series: ÖLFLEX SOLAR XLWP
Unit Price (€ / mtr.)
2.8322 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 mtr.
2.8322 €
10 mtr.
2.5585 €
50 mtr.
2.3086 €
100 mtr.
2.1182 €
500 mtr.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale
Solar cable, 1023621, LAPP
The 1023621 is a solar cable suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power systems. It is applicable for the connection between solar panels and as extension cable between the individual module strings or the DC/AC inverter.
Features
- Solar Energy
- Halogen-free
- Cold-resistant
- Acid-resistant
- Temperature-resistant
- Waterproof
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | XLPE | |
| Bending radius unmoved | 24.4 mm | |
| Cable material | copper, tin-plated | |
| Colour | black/red | |
| Cable cross-section | 4.0 mm² | |
| Temperature range (active) | -25 °C to 120 °C | |
| Rated voltage U0 | 1500 V | |
| Material | XLPE | |
| Halogen free | Yes | |
| Rated voltage | 1.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 6.5 kV | |
| Outer diameter | 5.8 mm | |
| Bending radius moved | 24.4 mm | |
| Product type | photovoltaic cable | |
| Temperature range (unmoved) | -40 °C to 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85444999 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
