1023602 | LAPP

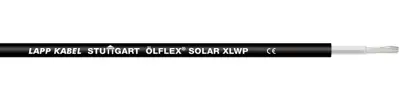

XLPE-photovoltaic cable, halogen free, ÖLFLEX SOLAR XLWP, 6.0 mm², black, outer Ø 6.4 mm, 1023602
Order No.: 33P5145
EAN: 4044777548293
MPN:
1023602
ÖLFLEX SOLAR XLWP 1x6 WH/BK
Series: ÖLFLEX SOLAR XLWP
Unit Price (€ / mtr.)
2.8084 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
280.84 € *
Price list
Quantity
Price per unit*
100 mtr.
2.8084 €
500 mtr.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale
Solar cable, 1023602, LAPP
The 1023602 is a solar cable suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power systems. It is applicable for the connection between solar panels and as extension cable between the individual module strings or the DC/AC inverter.
Features
- Solar Energy
- Halogen-free
- Cold-resistant
- Acid-resistant
- Temperature-resistant
- Waterproof
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | XLPE | |
| Temperature range (active) | -25 °C to 120 °C | |
| Test voltage | 6.5 kV | |
| Colour | black | |
| Halogen free | Yes | |
| Outer diameter | 6.4 mm | |
| Bending radius unmoved | 26.8 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 120 °C | |
| Material | XLPE | |
| Rated voltage U0 | 1500 V | |
| Bending radius moved | 26.8 mm | |
| Rated voltage | 1.5 kV | |
| Product type | photovoltaic cable | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444999 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
