1023601 | LAPP

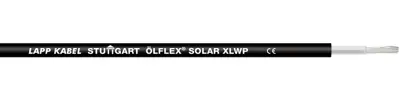

XLPE-photovoltaic cable, halogen free, ÖLFLEX SOLAR XLWP, 4.0 mm², black, outer Ø 5.8 mm, 1023601
Order No.: 33P5142
EAN: 4044777548262
MPN:
1023601
ÖLFLEX SOLAR XLWP 1x4 WH/BK
Series: ÖLFLEX SOLAR XLWP
Unit Price (€ / mtr.)
3.2011 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 mtr.
3.2011 €
10 mtr.
2.8917 €
50 mtr.
2.6061 €
100 mtr.
2.3919 €
500 mtr.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale
Solar cable, 1023601, LAPP
The 1023601 is a solar cable suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power systems. It is applicable for the connection between solar panels and as extension cable between the individual module strings or the DC/AC inverter.
Features
- Solar Energy
- Halogen-free
- Cold-resistant
- Acid-resistant
- Temperature-resistant
- Waterproof
- UV-resistant
Technical specifications
| Core insulation material | XLPE | |
| Colour | black | |
| Outer diameter | 5.8 mm | |
| Test voltage | 6.5 kV | |
| Halogen free | Yes | |
| Cable cross-section | 4.0 mm² | |
| Material | XLPE | |
| Cable material | copper, tin-plated | |
| Rated voltage U0 | 1500 V | |
| Temperature range (unmoved) | -40 °C to 120 °C | |
| Temperature range (active) | -25 °C to 120 °C | |
| Bending radius moved | 24.4 mm | |
| Conductor category | CL.5 = fine stranded | |
| Bending radius unmoved | 24.4 mm | |
| Rated voltage | 1.5 kV |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444999 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
