0073001 | LAPP

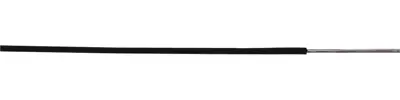

Silicone-switching wire, halogen free, ÖLFLEX HEAT 180 SiD, 4.0 mm², black, outer Ø 3.9 mm, 0073001
Order No.: 33P1067
EAN: 4044774690445
MPN:
0073001
ÖLFLEX HEAT 180 SiD 1X4 BK
Series: ÖLFLEX HEAT 180 SiD
Unit Price (€ / mtr.)
2.9274 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9274 €
10 mtr.
2.5466 €
50 mtr.
2.3681 €
100 mtr.
2.1777 €
500 mtr.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Core insulation material | silicone | |
| Colour | black | |
| Outer diameter | 3.9 mm | |
| Test voltage | 2 kV | |
| Halogen free | Yes | |
| Cable cross-section | 4.0 mm² | |
| Cable material | copper, tin-plated | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -50 to 180 °C | |
| Bending radius moved | 11.7 mm | |
| Conductor category | CL.1 = stranded | |
| Bending radius unmoved | 23.4 mm | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444991 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
