0072001 | LAPP

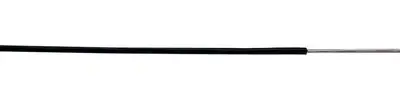

Silicone-switching wire, halogen free, ÖLFLEX HEAT 180 SiD, 2.5 mm², black, outer Ø 3.2 mm, 0072001
Order No.: 33P1065
EAN: 4044774690421
MPN:
0072001
ÖLFLEX HEAT 180 SiD 1X2,5 BK
Series: ÖLFLEX HEAT 180 SiD
Unit Price (€ / mtr.)
1.7255 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7255 €
10 mtr.
1.4875 €
50 mtr.
1.3923 €
100 mtr.
1.2614 €
500 mtr.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
Single wire, 0072001, LAPP
The 0072001 single core possesses insulating properties after combustion due to remaining SiO2 ash on the conductor. It is suitable for areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while.
Features
- Control cabinet manufacturing
- Appliances and apparatus engineering
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
- Lighting technology
- Air-conditioning technology
- Generator and transformer manufacturing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | silicone | |
| Test voltage | 2 kV | |
| Colour | black | |
| Halogen free | Yes | |
| Outer diameter | 3.2 mm | |
| Bending radius unmoved | 19.2 mm | |
| Conductor category | CL.1 = stranded | |
| Temperature range (unmoved) | -50 to 180 °C | |
| Rated voltage U0 | 300 V | |
| Bending radius moved | 9.6 mm | |
| Rated voltage | 500 V | |
| Product type | switching wire | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444991 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
