79456200 | LAPP

Surface mount housing, size HA10, aluminum alloy, 2 x M20, angled, longitudinal bow locking, IP65, 79456200

Order No.: 30P1719
EAN: 4044773528008
MPN:
79456200
H-A 10 SDRL M20 ZW.
Series: EPIC H-A10

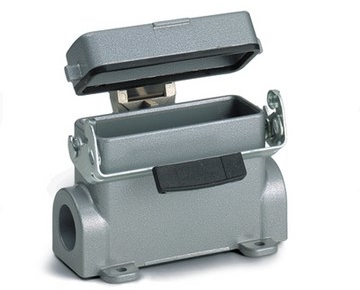

79456200 LAPP Housings for HDC Connectors Image 1

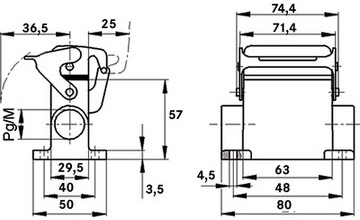

79456200 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
39.2105 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
39.21 € *
Price list
Quantity
Price per unit*
1 pcs.
39.2105 €
5 pcs.
36.9733 €
10 pcs.
34.7242 €
25 pcs.
32.4870 €
*incl. VAT plus shipping costs
Subject to prior sale

Bulkhead housing, 79456200, LAPP

The 79456200 compact base housing with 2 cable entries has a space-saving design, and is suitable for applications in a restricted space.

Features

  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HA10
Shell Material aluminum alloy
Cable Outlet 2 x M20, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
