79136200 | LAPP
Surface mount housing, size HB24, aluminum alloy, 2 x M25/M32, angled, cross bow locking, IP65, 79136200
Unit Price (€ / pc.)
35.8428 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
35.84 € *
Price list
Quantity
Price per unit*
1 pcs.
35.8428 €
5 pcs.
32.2609 €
10 pcs.
29.5834 €
50 pcs.
27.7746 €
100 pcs.
25.9896 €
*incl. VAT plus shipping costs
Subject to prior sale

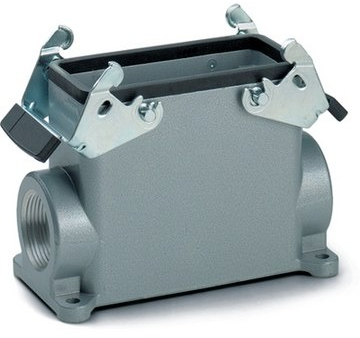

Bulkhead housing, 79136200, LAPP
The 79136200 metal housing for use in rectangular connectors consists of 2 double levers and 2 cable entries. It can be used, for example, in the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bulkhead housing | |
| Shell size | HB24 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | 2 x M25/M32, angled | |
| Type of locking | cross bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
