79064400 | LAPP

Surface mount housing, size HB10, aluminum alloy, M25/M32, angled, longitudinal bow locking, IP65, 79064400

Order No.: 30P252
EAN: 4044773531305
MPN:
79064400
H-B 10 SDRH-LB M32 ZW.
Series: EPIC H-B 10

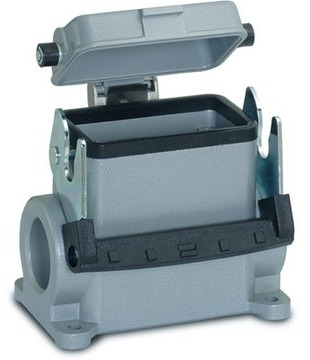

79064400 LAPP Housings for HDC Connectors Image 1
79064400 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
42.4711 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
212.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
42.4711 €

Bulkhead housing, 79064400, LAPP

The 79064400 metal housing has a cable entry, a single lever and is ideal for use in the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet M25/M32, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
