79006200 | LAPP

Surface mount housing, size HB6, aluminum alloy, 2 x M25/M32, angled, longitudinal bow locking, IP65, 79006200

Order No.: 30P625
EAN: 4044773533156
MPN:
79006200
H-B 6 SGRLH M25 ZW.
Series: EPIC H-B 6

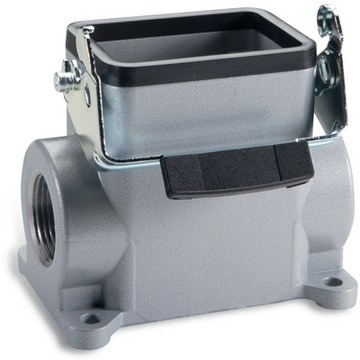

79006200 LAPP Housings for HDC Connectors Image 1

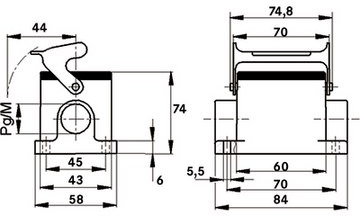

79006200 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.1788 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
291.79 € *
Price list
Quantity
Price per unit*
10 pcs.
29.1788 €
50 pcs.
27.4176 €
100 pcs.
25.6445 €
*incl. VAT plus shipping costs
Subject to prior sale

Bulkhead housing, 79006200, LAPP

The 79006200 universal metal housing with 2 cable entries can be used, for example, in control systems or the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB6
Shell Material aluminum alloy
Cable Outlet 2 x M25/M32, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
