79005200 | LAPP

Surface mount housing, size HB6, aluminum alloy, M25/M32, angled, longitudinal bow locking, IP65, 79005200

Order No.: 30P619
EAN: 4044773533200
MPN:
79005200
H-B 6 SGRH M25 ZW.
Series: EPIC H-B 6

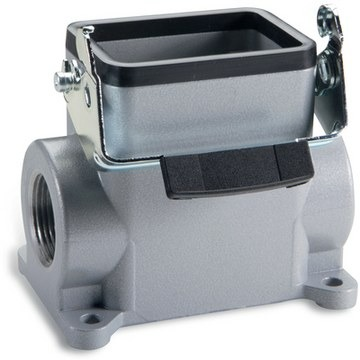

79005200 LAPP Housings for HDC Connectors Image 1

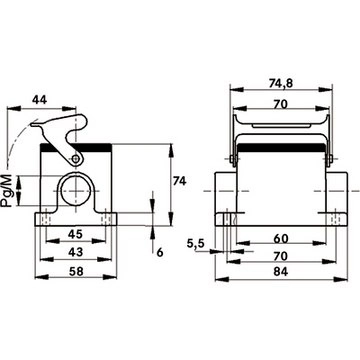

79005200 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.6211 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
246.21 € *
Price list
Quantity
Price per unit*
10 pcs.
24.6211 €
50 pcs.
23.1336 €
100 pcs.
21.6342 €
*incl. VAT plus shipping costs
Subject to prior sale

Bulkhead housing, 79005200, LAPP

The 79005200 metal housing is suitable for example, for control systems. The high housing has 1 cable entry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB6
Shell Material aluminum alloy
Cable Outlet M25/M32, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
