70474000 | LAPP

Surface mount housing, size HA10, aluminum alloy, longitudinal bow locking, IP65, 70474000

Order No.: 30P1737
EAN: 4044773544176
MPN:
70474000
H-A 16 AD ANBAUGEHAEUSE
Series: EPIC H-A10

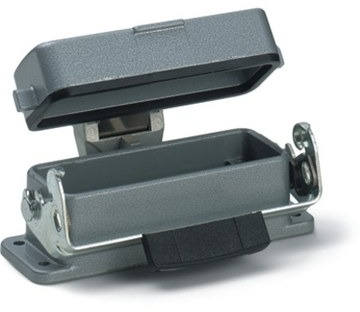

70474000 LAPP Housings for HDC Connectors Image 1

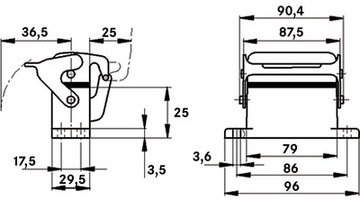

70474000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.4454 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
87.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
17.4454 €

Bulkhead housing, 70474000, LAPP

The 70474000 compact housing for rectangular connectors is ideal for use in machine and device manufacturing and is supplied with a seal.

Features

  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory
Technical specifications
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Shell size HA10
Version bulkhead housing
Shell Material aluminum alloy
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
