70250214 | LAPP

Grommet housing, size HB16, zinc alloy, cross bow locking, IP68, 70250214

Order No.: 30P1687
EAN: 4044774919669
MPN:
70250214
EPIC ULTRA H-B 16 TS QB 7-15

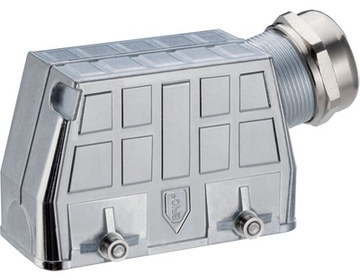

70250214 LAPP Housings for HDC Connectors Image 1
70250214 LAPP Housings for HDC Connectors Image 2
70250214 LAPP Housings for HDC Connectors Image 3
Image may differ
Unit Price (€ / pc.)
29.0717 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
29.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.0717 €

Sleeve housing, 70250214, LAPP

Features

  • Good chemical resistance
  • Wide clamping range
  • Optimum strain relief
  • Robust
  • Interference signals

Applications

  • In EMC-sensitive environments
  • For fixed and flexible applications
  • Construction machinery
  • Electric motor manufacturing
Technical specifications
Shell Material zinc alloy
Shell size HB16
Degree of protection (IP) IP68
Version grommet housing
Type of locking cross bow locking
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
