70250200 | LAPP

Grommet housing, size HB6, zinc alloy, longitudinal bow locking, IP65, 70250200

Order No.: 30P1698
EAN: 4044774919508
MPN:
70250200
EPIC ULTRA H-B 6 TG LB 6-13

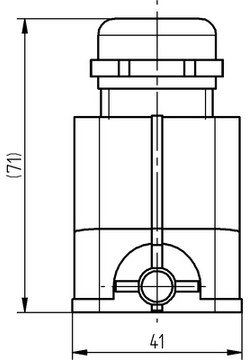

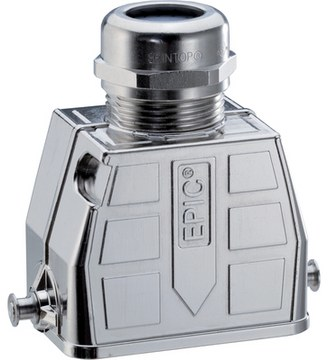

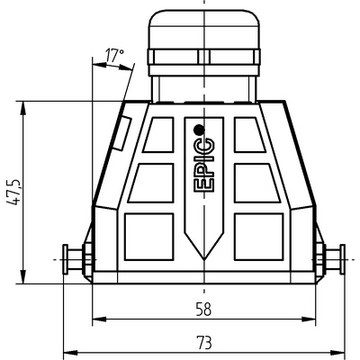

70250200 LAPP Housings for HDC Connectors Image 1
70250200 LAPP Housings for HDC Connectors Image 2
70250200 LAPP Housings for HDC Connectors Image 3
Image may differ
Unit Price (€ / pc.)
24.5140 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.5140 €

Sleeve housing, 70250200, LAPP

Features

  • Good chemical resistance
  • Wide clamping range
  • Optimum strain relief
  • Robust
  • Corrosion-resistant

Applications

  • In EMC-sensitive environments
  • For fixed and flexible applications
  • Construction machinery
  • Electric motor manufacturing
Technical specifications
Filter Property Value
Shell Material zinc alloy
Degree of protection (IP) IP65
Version grommet housing
Shell size HB6
Type of locking longitudinal bow locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
