70161200 | LAPP
Surface mount housing, size HB24, aluminum alloy, 2 x PG21/PG29, angled, longitudinal bow locking, IP65, 70161200
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
47.3263 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
47.33 € *
Price list
Quantity
Price per unit*
1 pcs.
47.3263 €
5 pcs.
42.5901 €
10 pcs.
39.0439 €
50 pcs.
36.6877 €
100 pcs.
34.3196 €
*incl. VAT plus shipping costs
Subject to prior sale

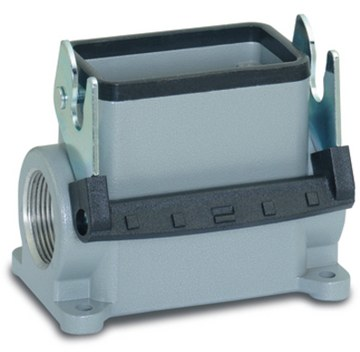

Bulkhead housing, 70161200, LAPP
The 70161200 metal housing for rectangular connectors consists of a single lever, 2 cable entries and is not only intended for use in investment construction.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry

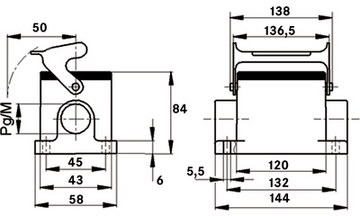

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bulkhead housing | |
| Shell size | HB24 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | 2 x PG21/PG29, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
