70065200 | LAPP

Surface mount housing, size HB10, aluminum alloy, 2 x PG21/PG29, angled, longitudinal bow locking, IP65, 70065200

Order No.: 30P262
EAN: 4044773576061
MPN:
70065200
H-B 10 SDRLH-LB 21 ZW.
Series: EPIC H-B 10

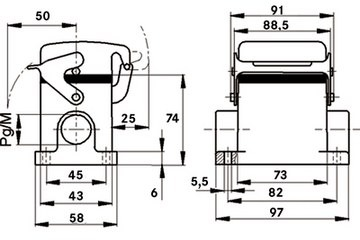

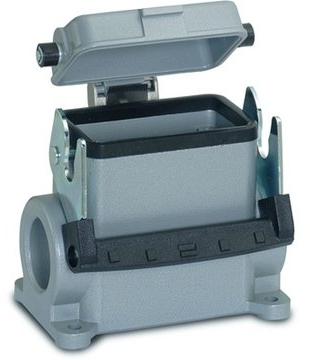

70065200 LAPP Housings for HDC Connectors Image 1
70065200 LAPP Housings for HDC Connectors Image 2
Image may differ

Not suitable for new designs - Last time buy manufacturer: 12.31.2025

Unit Price (€ / pc.)
43.9586 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
219.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
43.9586 €

Bulkhead housing, 70065200, LAPP

The 70065200 metal housing consists of 2 cable entries, a single lever and is the ideal option for investment construction applications.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet 2 x PG21/PG29, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
