70057200 | LAPP

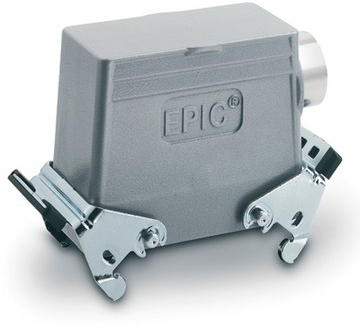

Grommet housing, size HB10, aluminum alloy, PG21/PG29, angled, cross bow locking, IP65, 70057200
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
22.0269 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.03 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0269 €
5 pcs.
19.8373 €
10 pcs.
18.1832 €
50 pcs.
17.0765 €
100 pcs.
15.9698 €
*incl. VAT plus shipping costs
Subject to prior sale
Sleeve housing, 70057200, LAPP
The 70057200 metal housing for use in investment construction has 2 double levers, a side cable entry and is equipped with a neck.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | grommet housing | |
| Shell size | HB10 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | PG21/PG29, angled | |
| Type of locking | cross bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
