19123900 | LAPP

Grommet housing, size HB24, aluminum alloy, M25/M32, angled, longitudinal bow locking, IP65, 19123900

Order No.: 30P492
EAN: 4044773556667
MPN:
19123900
EPIC H-B 24 TS-RO M32 ZW
Series: EPIC H-B 24

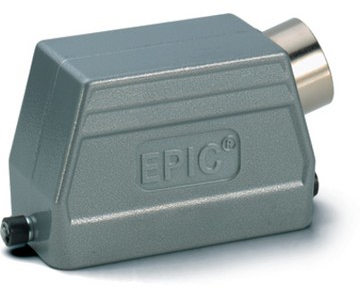

19123900 LAPP Housings for HDC Connectors Image 1

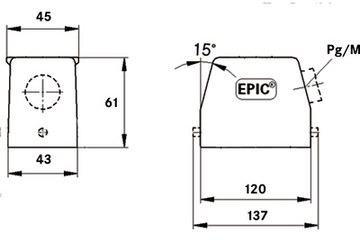

19123900 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.0039 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.00 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0039 €
5 pcs.
18.0047 €
10 pcs.
16.5172 €
50 pcs.
15.5057 €
100 pcs.
14.5061 €
*incl. VAT plus shipping costs
Subject to prior sale

Sleeve housing, 19123900, LAPP

The 19123900 housing with a side cable entry and pivots for a single lever is ideal for use, for example, in investment construction and is equipped with a neck.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Filter Property Value
Version grommet housing
Shell size HB24
Shell Material aluminum alloy
Cable Outlet M25/M32, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
