19104900 | LAPP

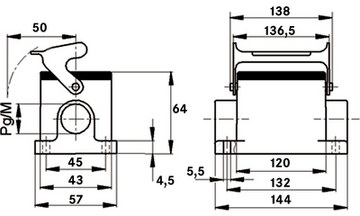

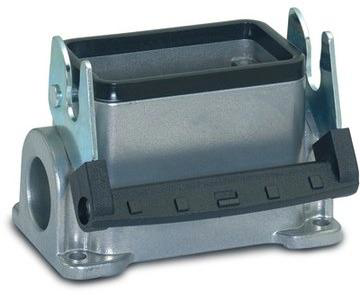

Surface mount housing, size HB24, aluminum alloy, M25, angled, longitudinal bow locking, IP65, 19104900
Unit Price (€ / pc.)
27.0606 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.06 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0606 €
5 pcs.
24.3474 €
10 pcs.
22.3244 €
50 pcs.
20.9678 €
100 pcs.
19.6231 €
*incl. VAT plus shipping costs
Subject to prior sale
Bulkhead housing, 19104900, LAPP
The 19104900 metal housing has a single lever, a cable entry and can be used, for example, in investment construction.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bulkhead housing | |
| Shell size | HB24 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | M25, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
