19104000 | LAPP
Bulkhead housing, size HB24, aluminum alloy, M25, angled, cross bow locking, IP65, 19104000
Unit Price (€ / pc.)
27.6913 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
27.69 € *
Price list
Quantity
Price per unit*
1 pcs.
27.6913 €
5 pcs.
24.9186 €
10 pcs.
22.8480 €
50 pcs.
21.4557 €
100 pcs.
20.0753 €
*incl. VAT plus shipping costs
**Subject to prior sale

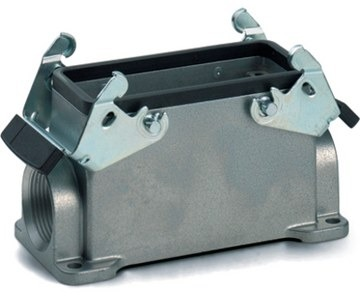

Bulkhead housing, 19104000, LAPP
The 19104000 metal housing consists of 2 double levers and 1 cable entry is suitable for use in applications of the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Version | bulkhead housing | |
| Shell size | HB24 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | M25, angled | |
| Degree of protection (IP) | IP65 | |
| Type of locking | cross bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
