19092000 | LAPP

Grommet housing, size HB16, aluminum alloy, M25/M32, angled, cross bow locking, IP65, 19092000

Order No.: 30P377
EAN: 4044773557190
MPN:
19092000
EPIC H-B 16 TS M32 ZW
Series: EPIC H-B 16

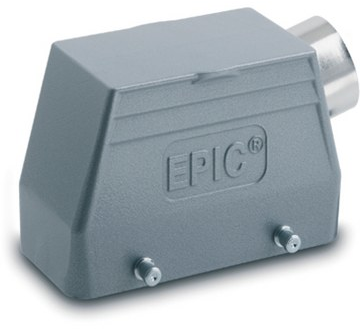

19092000 LAPP Housings for HDC Connectors Image 1
19092000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.9103 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.91 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9103 €
5 pcs.
14.5418 €
10 pcs.
13.6374 €
25 pcs.
12.7211 €
*incl. VAT plus shipping costs
Subject to prior sale

Sleeve housing, 19092000, LAPP

The 19092000 metal housing for use in investment construction contains the pivots for a direct lever and a side cable entry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version grommet housing
Shell size HB16
Shell Material aluminum alloy
Cable Outlet M25/M32, angled
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
