19080500 | LAPP

Grommet housing, size HB16, aluminum alloy, 2 x M25, straight, cross bow locking, IP65, 19080500

Order No.: 30P351
EAN: 4044773557428
MPN:
19080500
EPIC H-B 16 TG 2XM25 ZW/SO
Series: EPIC H-B 16

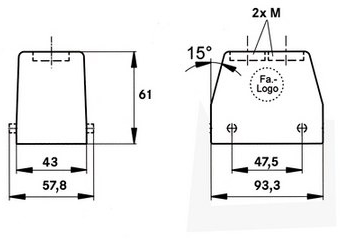

19080500 LAPP Housings for HDC Connectors Image 1

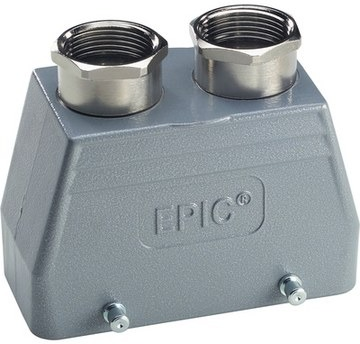

19080500 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
35.3192 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
176.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
35.3192 €

Sleeve housing, 19080500, LAPP

The 19080500 universal housing consists of pivots for a single lever, 2 direct cable entries and is suitable for investment construction.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Filter Property Value
Version grommet housing
Shell size HB16
Shell Material aluminum alloy
Cable Outlet 2 x M25, straight
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
