19042800 | LAPP
Grommet housing, size HB10, aluminum alloy, M20/M25, angled, longitudinal bow locking, IP65, 19042800
Unit Price (€ / pc.)
11.5311 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.53 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5311 €
10 pcs.
10.8766 €
50 pcs.
10.1983 €
100 pcs.
9.5438 €
*incl. VAT plus shipping costs
Subject to prior sale

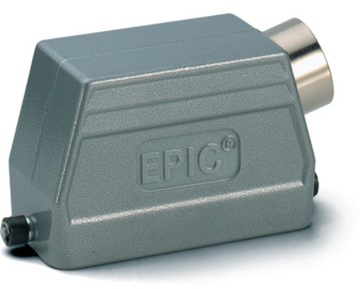

Sleeve housing, 19042800, LAPP
The 19042800 connector housing with a side cable entry is suitable for use in lighting and sound systems.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry

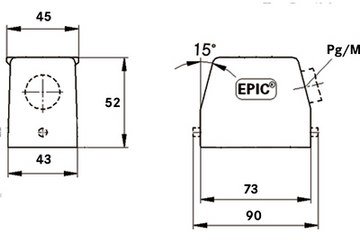

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | grommet housing | |
| Shell size | HB10 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | M20/M25, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
