19035100 | LAPP

Surface mount housing, size HB10, aluminum alloy, 2 x M20/M25, angled, cross bow locking, IP65, 19035100

Order No.: 30P282
EAN: 4044773558012
MPN:
19035100
H-B 10 SGRL M25 ZW.
Series: EPIC H-B 10

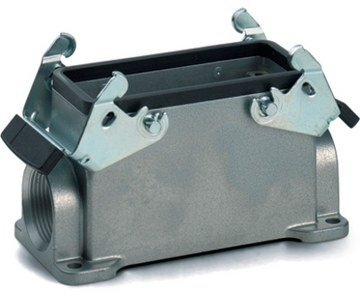

19035100 LAPP Housings for HDC Connectors Image 1

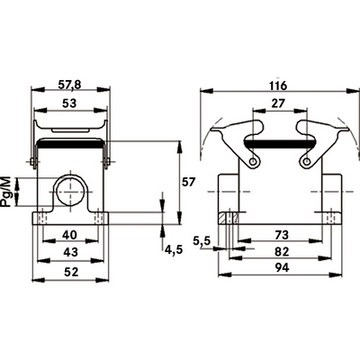

19035100 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.2026 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
292.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
29.2026 €

Bulkhead housing, 19035100, LAPP

The 19035100 universal metal housing for rectangular connectors consists of 2 double levers, 2 cable entries and is suitable for use in the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version bulkhead housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet 2 x M20/M25, angled
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
