19024000 | LAPP

Grommet housing, size HB6, aluminum alloy, M20/M25, straight, longitudinal bow locking, IP65, 19024000

Order No.: 30P589
EAN: 4044773558111
MPN:
19024000
EPIC H-B 6 TBF M25
Series: EPIC H-B 6

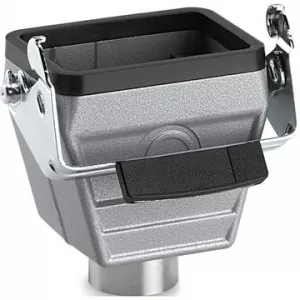

19024000 LAPP Housings for HDC Connectors Image 1

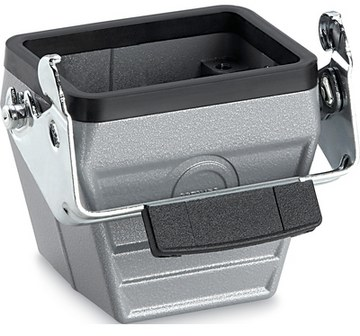

19024000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.9987 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
329.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
32.9987 €

Sleeve housing, 19024000, LAPP

The 19024000 universal metal housing with a direct cable entry is suitable for use in investment construction and the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Version grommet housing
Shell size HB6
Shell Material aluminum alloy
Cable Outlet M20/M25, straight
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
