19022000 | LAPP

Grommet housing, size HB6, aluminum alloy, M20/M25, angled, longitudinal bow locking, IP65, 19022000

Order No.: 30P597
EAN: 4044773488883
MPN:
19022000
EPIC H-B 6 TS M25 ZW
Series: EPIC H-B 6

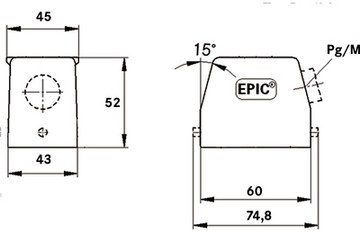

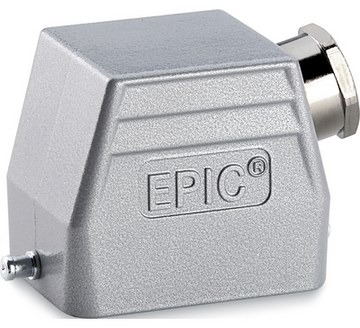

19022000 LAPP Housings for HDC Connectors Image 1
19022000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.6021 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.60 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6021 €
5 pcs.
11.3526 €
10 pcs.
10.4125 €
50 pcs.
9.7699 €
100 pcs.
9.1511 €
*incl. VAT plus shipping costs
Subject to prior sale

Sleeve housing, 19022000, LAPP

The 19022000 universal housing for rectangular connectors has a side cable entry, pivots for a single lever and can be used, for example, in control systems.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Version grommet housing
Shell size HB6
Shell Material aluminum alloy
Cable Outlet M20/M25, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
