19009000 | LAPP

Surface mount housing, size HB6, aluminum alloy, 2 x M20/M25, angled, longitudinal bow locking, IP65, 19009000

Order No.: 30P609
EAN: 4044773558265
MPN:
19009000
H-B 6 SDRL M20 ZW.
Series: EPIC H-B 6

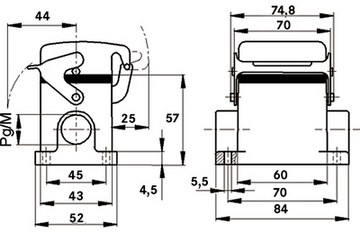

19009000 LAPP Housings for HDC Connectors Image 1

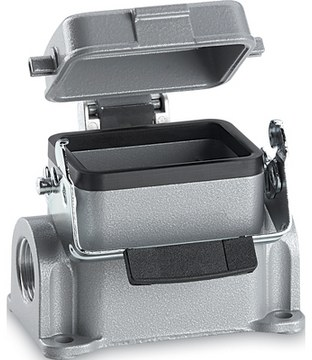

19009000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.5140 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
245.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
24.5140 €

Bulkhead housing, 19009000, LAPP

The 19009000 universal base housing has 2 cable entries, 1 single lever and can be used, for example, in investment construction or control systems.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB6
Shell Material aluminum alloy
Cable Outlet 2 x M20/M25, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
