19007000 | LAPP

Surface mount housing, size HB6, aluminum alloy, M20/M25, angled, longitudinal bow locking, IP65, 19007000

Order No.: 30P585
EAN: 4044773558289
MPN:
19007000
EPIC H-B 6 SDR M20 ZW.
Series: EPIC H-B 6

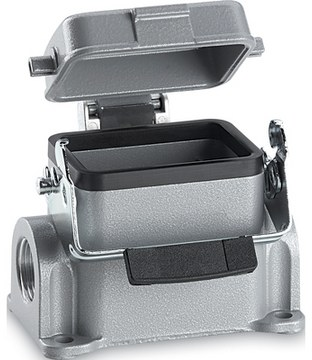

19007000 LAPP Housings for HDC Connectors Image 1

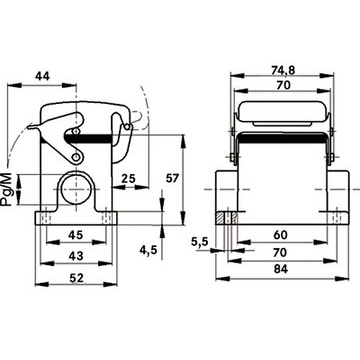

19007000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.8595 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
238.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
23.8595 €

Bulkhead housing, 19007000, LAPP

The 19007000 metal housing is ideal for use with inserts that have outstanding electrical properties.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB6
Shell Material aluminum alloy
Cable Outlet M20/M25, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
