19005000 | LAPP

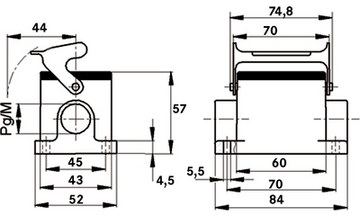

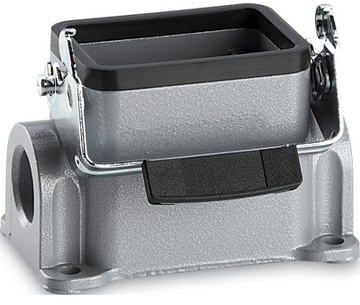

Surface mount housing, size HB6, aluminum alloy, M20/M25, angled, longitudinal bow locking, IP65, 19005000
Unit Price (€ / pc.)
17.0289 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.03 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0289 €
5 pcs.
15.3272 €
10 pcs.
14.0539 €
50 pcs.
13.1971 €
100 pcs.
12.3403 €
*incl. VAT plus shipping costs
Subject to prior sale
Bulkhead housing, 19005000, LAPP
The 19005000 universal base housing has a cable entry, a single lever and is ideal for use in investment construction.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Control engineering
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bulkhead housing | |
| Shell size | HB6 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | M20/M25, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
