10620600 | LAPP
Grommet housing, size HA3, PA, PG11, angled, longitudinal bow locking, IP65, 10620600
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
4.7957 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.80 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7957 €
10 pcs.
4.3911 €
50 pcs.
4.1055 €
100 pcs.
3.8318 €
*incl. VAT plus shipping costs
Subject to prior sale

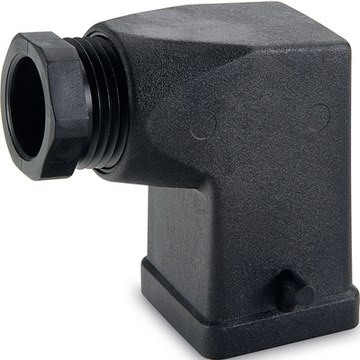

Sleeve housing, 10620600, LAPP
The 10620600 compact plastic housing has a side cable entry and is suitable for use in machine and device manufacturing.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | grommet housing | |
| Shell size | HA3 | |
| Shell Material | PA | |
| Cable Outlet | PG11, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
