10427300 | LAPP
Grommet housing, size HA3, PA, PG11, angled, longitudinal bow locking, IP65, 10427300
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
4.9504 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.95 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9504 €
10 pcs.
4.5339 €
50 pcs.
4.2483 €
100 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale

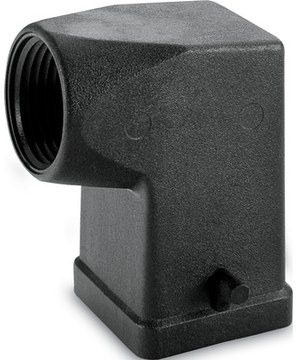

Sleeve housing, 10427300, LAPP
The 10427300 compact plastic housing has a side cable entry and is suitable for use in machine and device manufacturing.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | grommet housing | |
| Shell size | HA3 | |
| Shell Material | PA | |
| Cable Outlet | PG11, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
