10424000 | LAPP
Surface mount housing, size HA3, PA, PG11, angled, longitudinal bow locking, IP65, 10424000
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
8.4133 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.41 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4133 €
10 pcs.
7.6993 €
50 pcs.
7.2114 €
100 pcs.
6.7354 €
*incl. VAT plus shipping costs
**Subject to prior sale

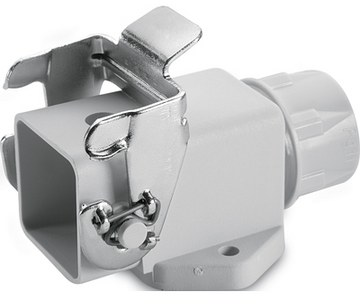

Bulkhead housing, 10424000, LAPP
The 10424000 compact base housing consists of one lever, a cable entry and is ideal for supplying power in restricted spaces.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Technical specifications
| Version | bulkhead housing | |
| Shell size | HA3 | |
| Shell Material | PA | |
| Cable Outlet | PG11, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
