10117000 | LAPP

Grommet housing, size HB24, aluminum alloy, PG21/PG29, straight, cross bow locking, IP65, 10117000

Order No.: 30P459
EAN: 4044773589771
MPN:
10117000
EPIC H-B 24 TBF 29 ZW
Series: EPIC H-B 24

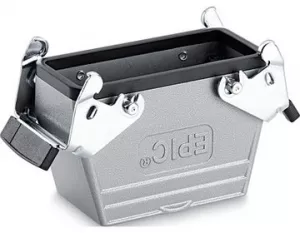

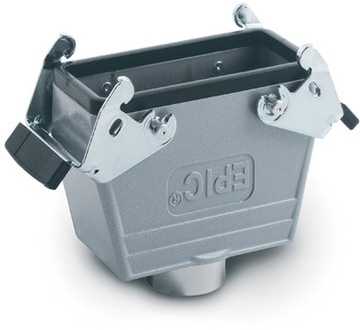

10117000 LAPP Housings for HDC Connectors Image 1
10117000 LAPP Housings for HDC Connectors Image 2
Image may differ

Not suitable for new designs - Last time buy manufacturer: 12.31.2025

Unit Price (€ / pc.)
28.8456 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.85 € *
Price list
Quantity
Price per unit*
1 pcs.
28.8456 €
5 pcs.
26.3823 €
10 pcs.
24.7282 €
25 pcs.
23.0741 €
*incl. VAT plus shipping costs
Subject to prior sale

Sleeve housing, 10117000, LAPP

The 10117000 metal housing for rectangular connectors consists of 2 double levers and a direct cable entry and can be used, for example, in the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Filter Property Value
Version grommet housing
Shell size HB24
Shell Material aluminum alloy
Cable Outlet PG21/PG29, straight
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
