10109900 | LAPP
Surface mount housing, size HB24, aluminum alloy, 2 x PG21, angled, longitudinal bow locking, IP65, 10109900
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
42.1855 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
42.19 € *
Price list
Quantity
Price per unit*
1 pcs.
42.1855 €
5 pcs.
37.9729 €
10 pcs.
34.8075 €
50 pcs.
32.6893 €
100 pcs.
30.5830 €
*incl. VAT plus shipping costs
Subject to prior sale

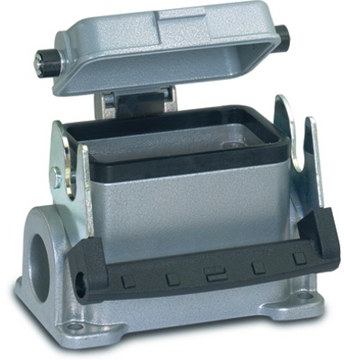

Bulkhead housing, 10109900, LAPP
The 10109900 metal housing with a single lever and 2 cable entries is able to withstand temperatures of approximately +125 degrees for a short period and can be used, for example, in investment construction.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bulkhead housing | |
| Shell size | HB24 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | 2 x PG21, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
