Surface mount housing, size HB24, aluminum alloy, cross bow locking, IP65, 10102000

Order No.: 30P454
EAN: 4044773055627
MPN:
10102000
EPIC H-B 24 AG
Series: EPIC H-B 24

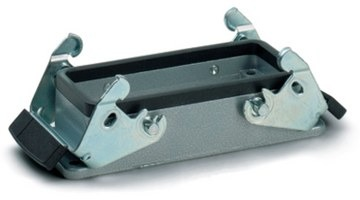

10102000 LAPP Housings for HDC Connectors Image 1

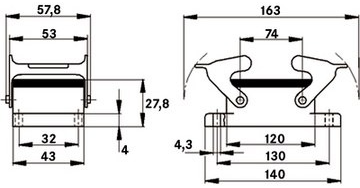

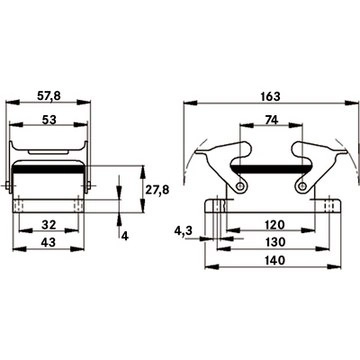

10102000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.0317 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
50.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
10.0317 €

Bulkhead housing, 10102000, LAPP

The 10102000 universal metal housing consists of 2 double levers, a seal and can be used, for example, in lighting and sound systems.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Type of locking cross bow locking
Degree of protection (IP) IP65
Shell size HB24
Version bulkhead housing
Shell Material aluminum alloy
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
