10072000 | LAPP

Surface mount housing, size HB16, aluminum alloy, cross bow locking, IP65, 10072000

Order No.: 30P333
EAN: 4044773056099
MPN:
10072000
EPIC H-B 16 AG
Series: EPIC H-B 16
10072000 LAPP Housings for HDC Connectors Image 1
10072000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.0682 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
40.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
8.0682 €

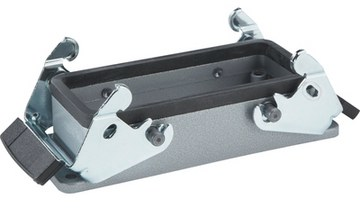

Bulkhead housing, 10072000, LAPP

The 10072000 housing for rectangular connectors is suitable for use in the plastics industry and consists of built-in housing, 2 double levers and a seal.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Type of locking cross bow locking
Degree of protection (IP) IP65
Shell size HB16
Version bulkhead housing
Shell Material aluminum alloy
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
