10034900 | LAPP

Surface mount housing, size HB10, aluminum alloy, PG16/PG21, angled, longitudinal bow locking, IP65, 10034900

Order No.: 30P283
EAN: 4044773564372
MPN:
10034900
H-B 10 SGR-LB 16 ZW.
Series: EPIC H-B 10

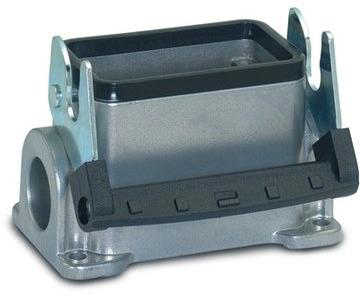

10034900 LAPP Housings for HDC Connectors Image 1
10034900 LAPP Housings for HDC Connectors Image 2
Image may differ

Not suitable for new designs - Last time buy manufacturer: 12.31.2025

Unit Price (€ / pc.)
20.1586 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
201.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
20.1586 €

Surface mount housing, 10034900, LAPP

The 10034900 metal housing for rectangular connectors is the ideal solution for applications in lighting and sound systems. It has 1 cable entry and a single lever.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet PG16/PG21, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
